MiX Mode: Approach a Problem from Different Perspectives

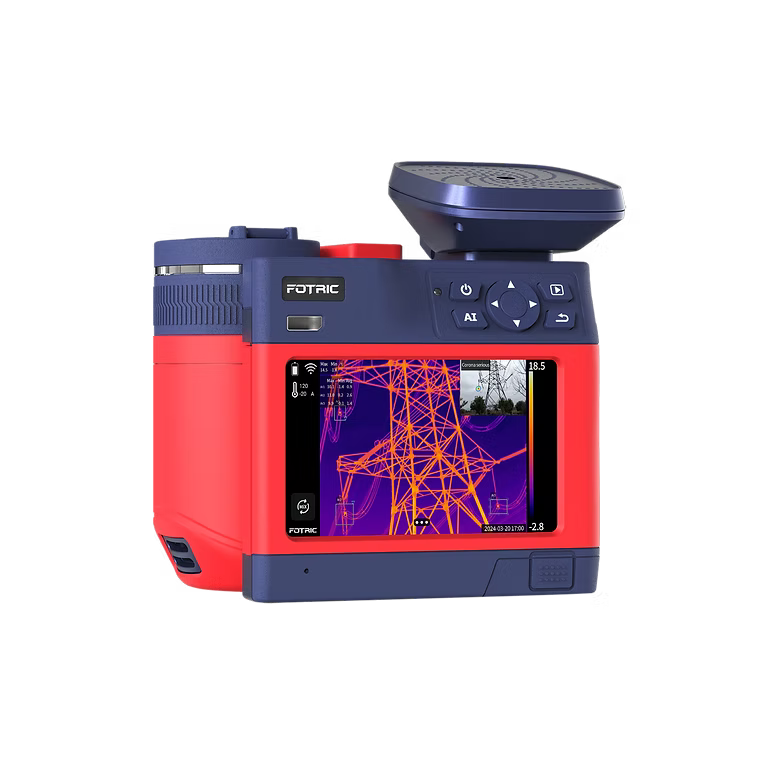

The MiX mode of the FOTRIC acoustic-thermal imaging device introduces a novel diagnostic approach tailored to real-world scenarios. During the inspection process, the device's 5-inch LCD screen simultaneously displays real-time thermal and acoustic images.

In MiX mode, the thermal distribution and acoustic patterns of the device under test appear simultaneously, enabling comprehensive and accurate analysis of equipment faults from multiple perspectives. This enhances inspection efficiency and quality.

IR Mode: Meticulous Measurement, Flawless Imaging

Up to 640x480 thermal resolution & IREdge image detail enhancement

Provide clear thermal gradients for easy analysis and preserves
thermal details to highlight object contour.

〉A wealth of selectable lenses

Single view lenses: 46° , 25° , 12° , 7°
Dual-view lenses: 25° &12° , 25° &7

〉TurboFocus® smart focusing

Ensures image clarity at any distance and any position, laying a solid foundation for AI recognition.

〉MagicThermal®

AI-based auto-recognition and feature contour mark up.

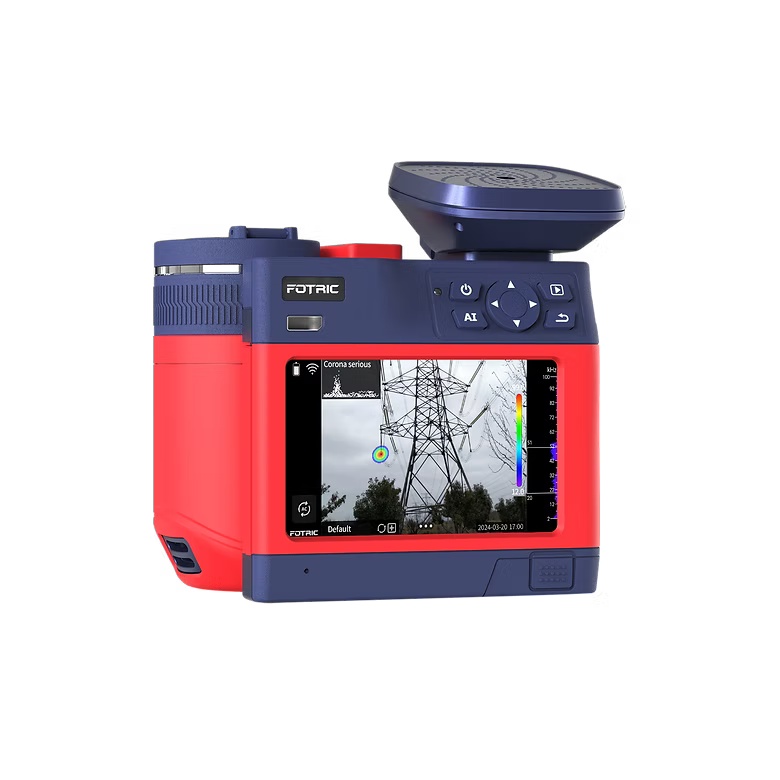

AC Mode: AI-empowered Acoustic Detection

Up to 162

MEMS digital microphones

1.3MP

Digital camera

Leak Evaluation

Leak level, leak rate, leak cost

Partial Discharge Diagnosis

Automatically identify surface, floating and corona discharge.

Filter Mode

Narrow the focus of the camera to an isolated area, screening out unwanted noise.

Signal Delay Mode(T-FFTD®)

Extrapolate intermittent signals to enhance camera detectability.

Specifications of P-MiX
