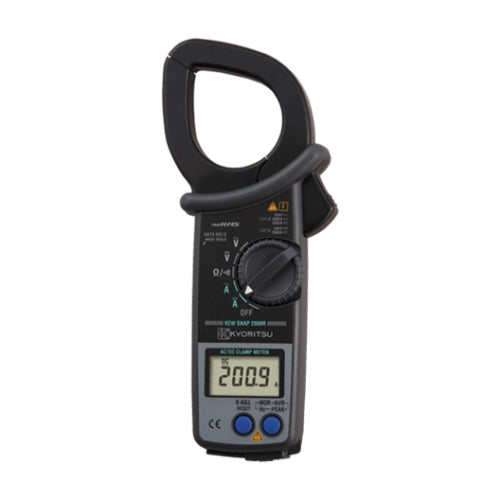

The Kyoritsu 2009R is a versatile AC/DC clamp meter designed for electricians, maintenance technicians, and industrial users who need reliable current measurements without breaking the circuit. Capable of measuring up to 2000A AC/DC, it is well suited for testing switchboards, large motors, generators, battery systems, and power distribution equipment.
True RMS technology ensures accurate readings even on circuits supplying variable speed drives, UPS systems, and other non-linear loads commonly found in modern installations. In addition to current measurement, the 2009R can measure voltage, resistance, frequency, capacitance, and temperature, making it a practical all round diagnostic tool.
The large clamp jaw makes it easy to work on larger cables and busbars, while the clear display and simple operation allow technicians to quickly capture measurements in the field.
| Specification | |
|
AC A
|
400.0/2000A |
| ±1.3%rdg±3dgt (0 to 400.0A, 150 to 1700A) [45 to 66Hz] | |
| ±2.0%rdg±5dgt (0 to 400.0A, 150 to 1700A) [20Hz to 1kHz] | |
| ±2.3%rdg±3dgt (1701 to 2000A) [45 to 66Hz] | |
| DC A | 400.0/2000A ±1.3%rdg±2dgt |
| AC V | 40.00/400.0/750V |
| ±1.0%rdg±3dgt [45 to 66Hz] | |
| ±1.5%rdg±5dgt [20Hz to 1kHz] | |
| DC V | 40.00/400.0/1000V ±1.0%rdg±2dgt |
| Ω | 400.0/4000Ω ±1.5%rdg±2dgt |
| (Electronic protection (no fuse) up to 600V) | |
| Continuity buzzer | Buzzer sounds below 20±1Ω |
| Hz | 10.0 to 4000Hz±1.5%rdg±5dgt |
| (Input sensitivityCurrent: more than 40AVoltage: more than 10V) | |
| Conductor size | φ55mm max. |
| Output | Recorder : |
| DC400mV against AC/DC400.0A | |
| DC200mV against AC/DC2000A | |
| Applicable standards | IEC 61010-1 CAT IV 600V / CAT III 1000V Pollution degree 2 |
| IEC 61010-031, IEC 61010-2-032, IEC 61326-2-2 | |
| Power source | R6 (1.5V) × 2 |
| Dimension | 250(L) × 105(W) × 49(D)mm |
| Weight | Approx. 540g (including batteries) |
| Accessories | 7107A (Test leads) |
| 9094 (Carrying case) | |
| R6 (AA) × 2, | |
| Instruction Manual |
