Turn your Android smartphone into a powerful 64-channel acoustic imaging camera.
The FOTRIC TD2e Geek helps technicians visually locate compressed air leaks, vacuum leaks, abnormal machinery noise and suspected electrical discharge sources.
Compact, lightweight and easy to operate, it is suitable for industrial maintenance, electrical inspection, HVAC troubleshooting and manufacturing quality control.
Key Features
- 64 MEMS digital microphones
- Wide 2 kHz to 100 kHz frequency range
- Audible, ultrasonic and custom frequency selection
- Single-source, multi-source and hologram display modes
- 15 Hz acoustic image frame rate
- 58° × 45° field of view
- Working distance from 0.3 m to 60 m
- Image and video recording
- Report generation and sharing
- At least four hours of continuous operation
- Compact 200 g aluminium-alloy construction
- Designed for resistance to a 1 m drop
- Compatible with supported Android 12+ smartphones
Applications
Compressed-Air and Vacuum Leaks
Quickly locate leaks from compressed-air lines, hoses, valves, fittings, flanges, cylinders, vacuum systems and pneumatic equipment.
Mechanical Equipment Inspection
Identify abnormal sound sources from motors, pumps, fans, bearings, gearboxes, conveyors and other rotating machinery.
Electrical Inspection
Locate suspected acoustic sources associated with corona and surface discharge around switchgear, transformers, insulators and electrical connections.
The TD2e Geek locates the acoustic source but does not diagnose or classify partial discharge. Findings should be confirmed using an appropriate electrical testing method.
HVAC Inspection
Locate air leaks in ducts and fittings and investigate abnormal noise from air-handling units, fan coils, cooling towers and ventilation equipment.
Manufacturing and Quality Control
Suitable for production-line noise investigation, component air-tightness testing, vehicle leak inspection and end-of-line quality checks.
Multiple Acoustic Imaging Modes
Single-Source Mode
Focuses on the dominant sound source for straightforward inspection work.
Multi-Source Mode
Displays multiple sound sources where several leaks or equipment noises are present.
Hologram Mode
Provides a wider acoustic view for complex environments and general sound-source investigation.
Android Smartphone Integration

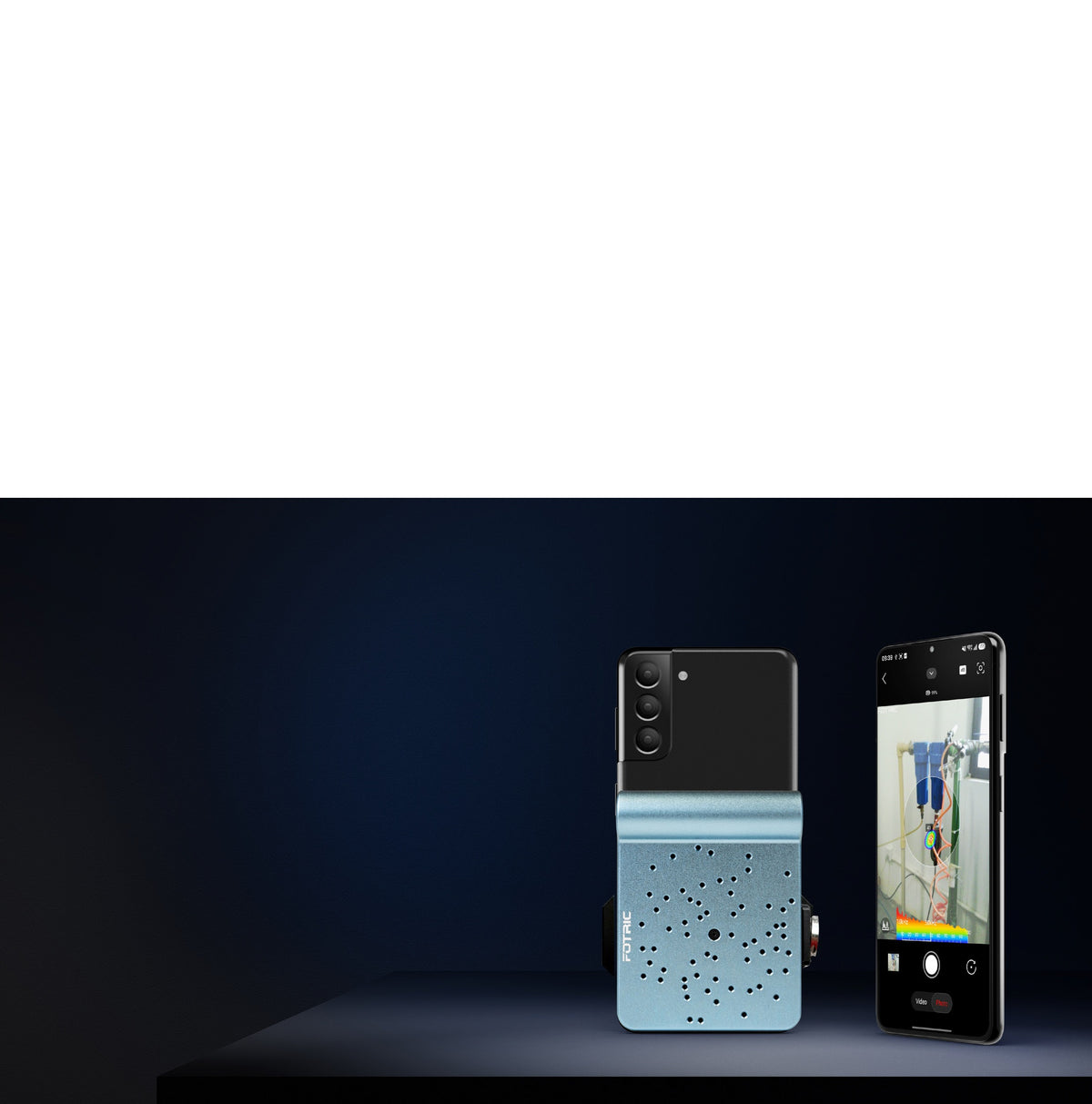

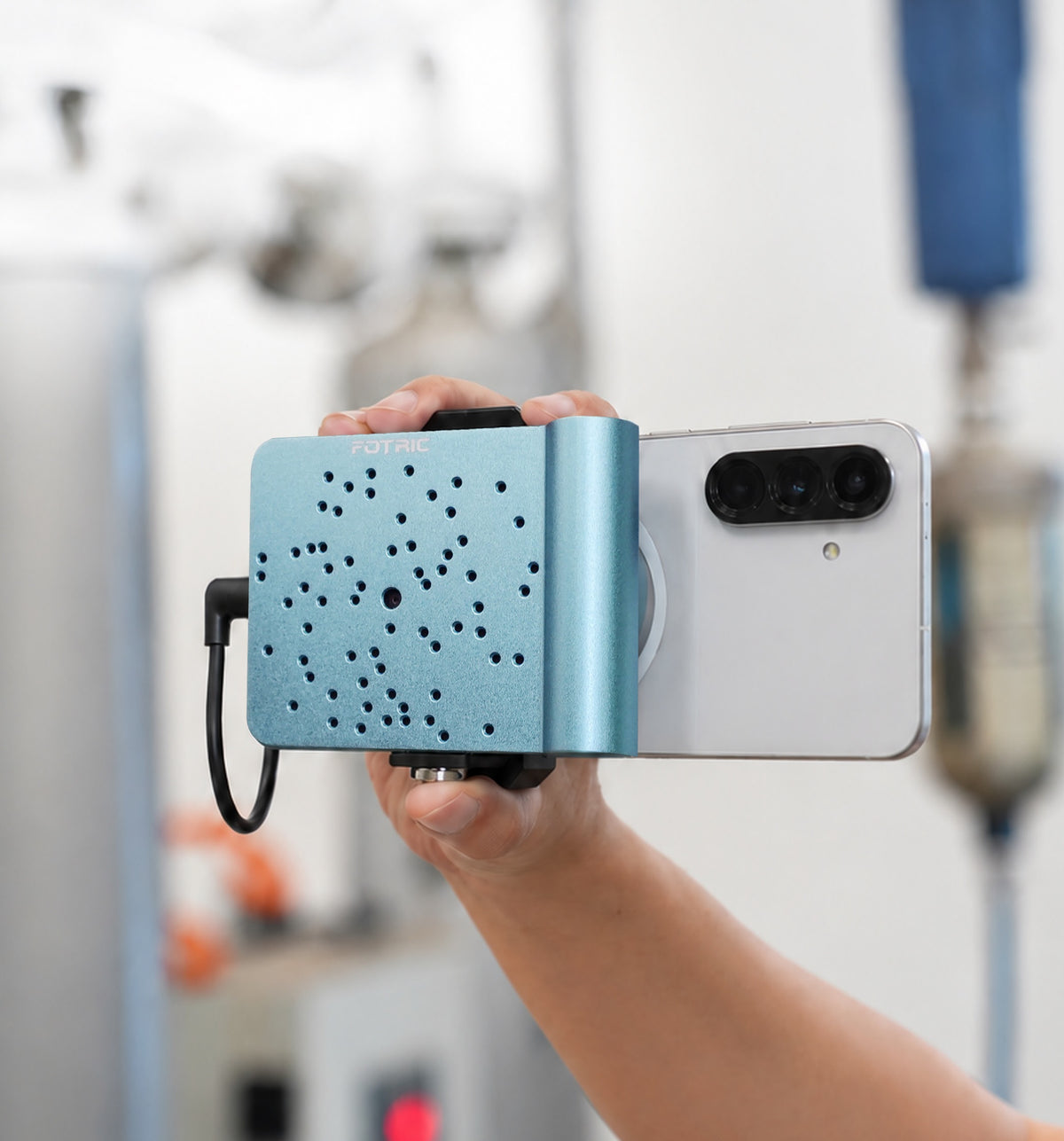

Connect the TD2e Geek to a compatible Android smartphone using USB Type-C and start inspecting through the FOTRIC application.
- Android 12 or later
- USB Type-C connection
- FOTRIC Manisen or FOTRIC Genie application
- Image, video and report sharing
Please confirm your smartphone make and model with CHK Power Quality before ordering.
Smartphone is not included. iOS is not currently supported.
Technical Specifications
| Specification | Details |
|---|---|
| Microphone array | 64 MEMS digital microphones |
| Frequency range | 2 kHz to 100 kHz |
| Frequency selection | Manually adjustable |
| Acoustic frame rate | 15 Hz |
| Sampling rate | 200 Hz |
| Field of view | 58° × 45° |
| Working distance | 0.3 m to 60 m |
| Localisation error | Less than 0.05 m at 1 m and 40 kHz |
| Display modes | Single-source, multi-source and hologram |
| Connection | USB Type-C, USB 2.0 |
| Battery | 3.6 V, 3200 mAh rechargeable lithium battery |
| Operating time | At least 4 hours |
| Charging | USB direct charging |
| Dimensions | 101 × 77 × 22 mm |
| Weight | Approximately 200 g |
| Housing | Aluminium alloy |
| Drop resistance | Designed for a 1 m drop |
| Operating platform | Android 12 or later |
| Warranty | 1 year |
Package Contents
- FOTRIC TD2e Geek acoustic imager
- USB Type-C cable
- Magnetic ring
- Ergonomic anti-slip handle
- Soft carrying bag
- Quick-start manual
- Product packaging
