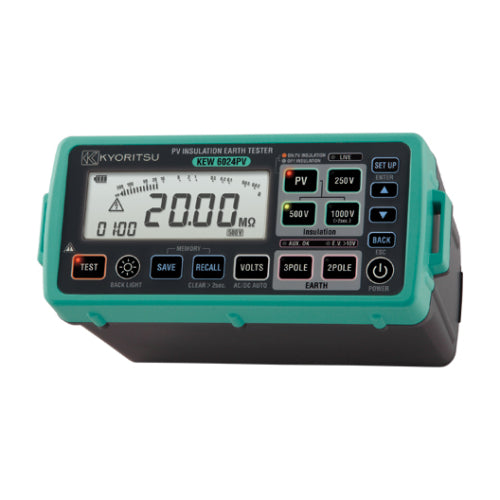

The Kyoritsu KEW 6024PV is a multifunction installation tester designed specifically for photovoltaic (PV) systems and electrical installations. It enables insulation resistance testing on live solar arrays without the need to short circuit panels, allowing faster and more efficient commissioning and maintenance of solar installations.
Combining multiple electrical test functions in a single instrument, the KEW 6024PV is ideal for solar installers, electrical contractors, maintenance technicians, and renewable energy operators. Its robust, weather resistant design makes it suitable for both rooftop solar systems and large scale solar farms.
| Specification | |||||||
|
PV Insulation resistance*
|
|||||||
| Test voltage | 500V | 1000V | |||||
| Range(Auto-ranging) | 20.00/200.0/2000MΩ | ||||||
| Measuring range | 0.00 to 1.50MΩ | 1.51 to 200.0MΩ | 0.00 to 1.50MΩ | 1.51 to 1000MΩ | |||
| 200.1 to 2000MΩ | 1001 to 2000MΩ | ||||||
| Accuracy | ±5%rdg±6dgt | ±1.5%rdg±5dgt | ±5%rdg±6dgt | ±1.5%rdg±5dgt | |||
| Open circuit voltage | 1 to 1.2times | ||||||
| Short circuit current | 1.5mA or less | ||||||
| Insulation resistance | |||||||
| Test voltage | 250V | 500V | 1000V | ||||
| Range(Auto-ranging) | 20.00/200.0/2000MΩ | ||||||
| Rated current | 1.0 to 1.2mA | ||||||
| 0.25MΩ | 0.5MΩ | 1MΩ | |||||
| First effective measuring range | 1.51 to 100.0MΩ | 1.51 to 200.0MΩ | 1.51 to 1000MΩ | ||||
| Mid-scale value | 50MΩ | ||||||
| Accuracy | ±1.5%rdg±5dgt | ||||||
| Second effective measuring range | 1.20 to 1.50MΩ | 1.20 to 1.50MΩ | 1.20 to 1.50MΩ | ||||
| 100.1 to 2000MΩ | 200.1 to 2000MΩ | 1001 to 2000MΩ | |||||
| Accuracy | ±5.0%rdg±6dgt | ||||||
| Open circuit voltage | 1 to 1.2times | ||||||
| Short circuit current | 1.5mA or less | ||||||
| Earth resistance | |||||||
| Measuring range(Auto-ranging) | 20.00/200.0/2000Ω | ||||||
| Accuracy | ±3.0%rdg±0.1Ω (20Ω range) | ||||||
| ±3.0%rdg±3dgt (200/2000Ω range) | |||||||
| Voltage measurement | |||||||
| Measuring range | AC 5 to 600V (45 to 65Hz) DC ±5 to 1000V | ||||||
| Accuracy | ±1.0%rdg±4dgt | ||||||
| General | |||||||
| Applicable Standards | IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2 | ||||||
| IEC 61010-2-030, IEC 61010-2-034, IEC 61010-031, IEC 60529(IP54) | |||||||
| IEC 61557-1,2,5,10, IEC 61326-1,2-2 | |||||||
| Power source | LR6(AA)(1.5V) × 6 | ||||||
| Dimension | 84(L) × 184(W) × 133(D)mm | ||||||
| Weight | Approx. 900g (including batteries) | ||||||
| Accessories | 7196B(Test leads with remote control switch) | ||||||
| 7244A(Test lead with alligator clip) | |||||||
| 8017(Extension prod long) | |||||||
| 8072(CATⅡStandard prod) | |||||||
| 8212-USB(USB adapter) | |||||||
| 9156A(Soft case with shoulder strap) | |||||||
| LR6(AA) × 6, | |||||||
| Instruction manual | |||||||
