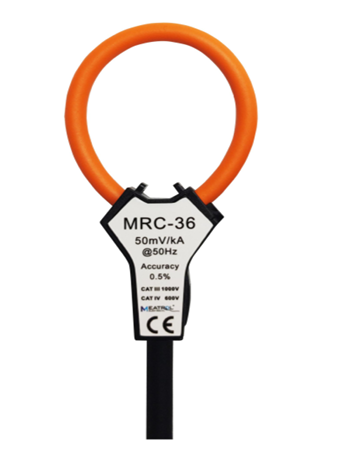

The MRC series is a new generation of flexible Rogowski coil (Rogowski® coil) current sensors, which are especially suitable for measuring in combination with portable devices. MRC coils have different sizes to cope with different conductors. The new generation of MRC coil strengthens the shielding layer and greatly reduces the influence of external magnetic fields; it can be directly connected to our rail-mounted and panel-type meters without the need for external integrators. MRC series have IP67 protection grade.
Brief technical specifcation:
-Window size:16mm
-Section :6mm
-Reference Rated current:100A
-Cable length:2 meter
-Calibrated Accuracy:±0.5%(temperature drift:300ppm/C)
-Ratio:50mV/kA@50Hz)
-linearity:0.2%(from 3%Advantages :
Applications
- Smart meter
- Rectifier current measurement
- Power quality analysis
- Motor overload/short circuit protection
- Current monitoring of power frequency and intermediate frequency welding machine
- Medium and high voltage switchgear protection system
- Remote Terminal Unit (RTU)
- Synchronous Phasor Measurement Unit (PMU)
- Current measurement on the secondary side of the electric furnace
