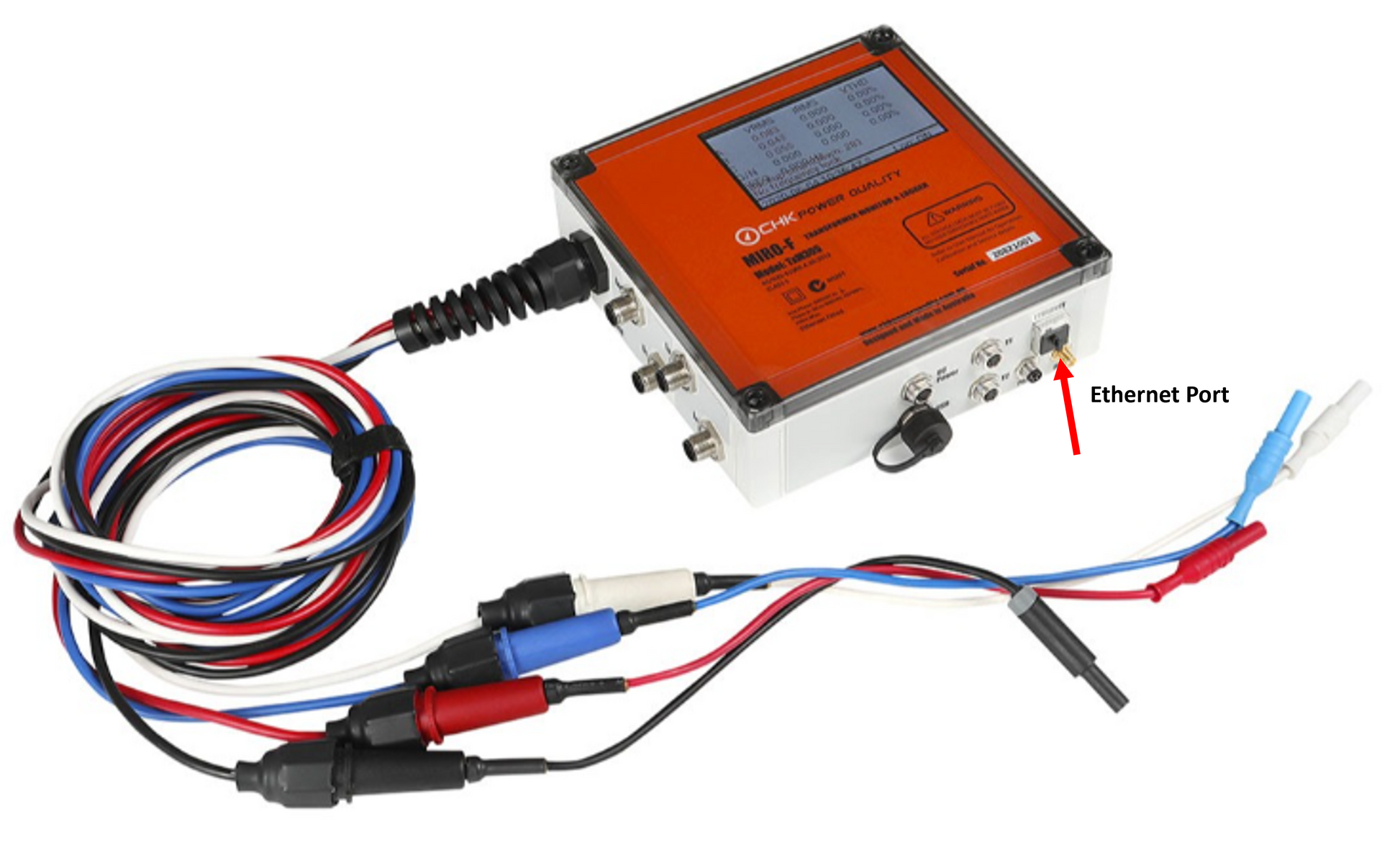

The Miro-F Transformer Monitor & Logger by CHK Power Quality is a rugged, IP-rated solution designed for continuous transformer condition and load monitoring in distribution networks. It measures voltage, current and key performance parameters with high accuracy, enabling utilities and asset managers to implement condition based maintenance and improve network reliability. Ideal for pole top or pad mount installations, the Miro-F delivers reliable long-term data logging with flexible remote communications options.
Key Features
- Class A Accuracy (IEC 61000-4-30)
Ensures audit grade power quality measurements for compliance and reporting. - Complete LV Monitoring Solution
Captures 3-phase voltage, current, power, energy, frequency, and temperature in a single device. - Advanced Power Quality Analysis
Detects sags, swells, interruptions, harmonics, THD, flicker, and transient events. - Transformer Health & Asset Insights
Supports thermal monitoring, load profiling, and loss-of-life calculations for condition based maintenance. - Gapless Continuous Data Logging
No data loss during downloads or configuration changes, ensuring reliable long term monitoring. - High-Speed Event Recording
Configurable triggers for waveform and RMS capture based on thresholds and disturbances. - Remote Connectivity Options
Integrated 4G, Ethernet, and WiFi support for real-time access and remote diagnostics. - SCADA & Protocol Support
Compatible with DNP3, Modbus TCP/IP, FTP, and utility communication systems. - Citrus & AsMoSys Software Integration
Enables automated reporting (EN50160, IEEE 519), analytics, and fleet wide asset management. - Rugged, Substation Ready Design
Compact, panel mountable unit with GPS time synchronisation and industrial grade reliability.
