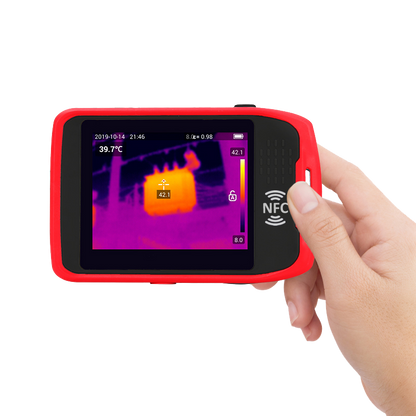

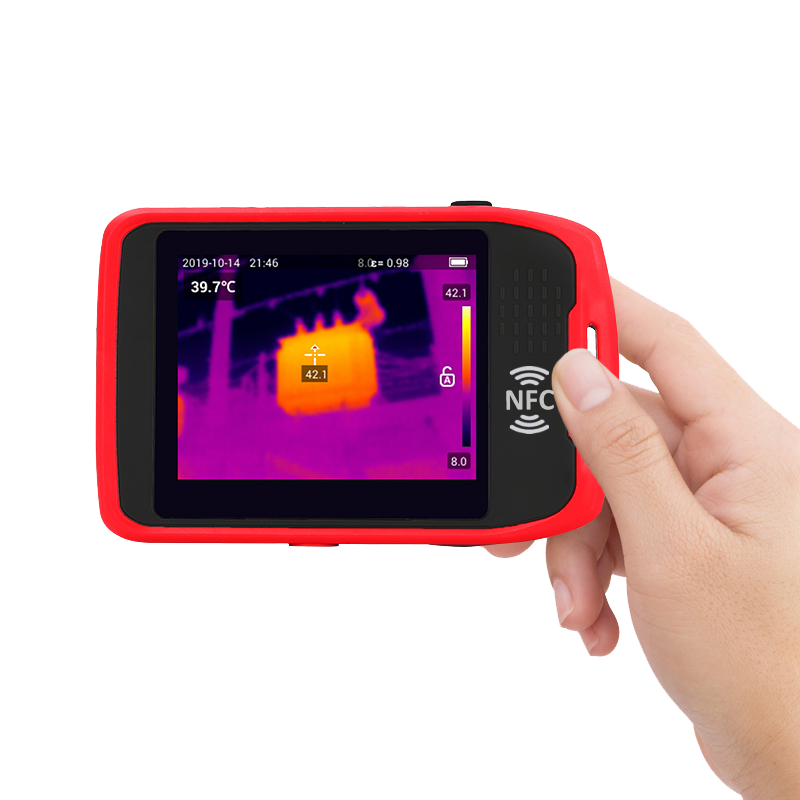

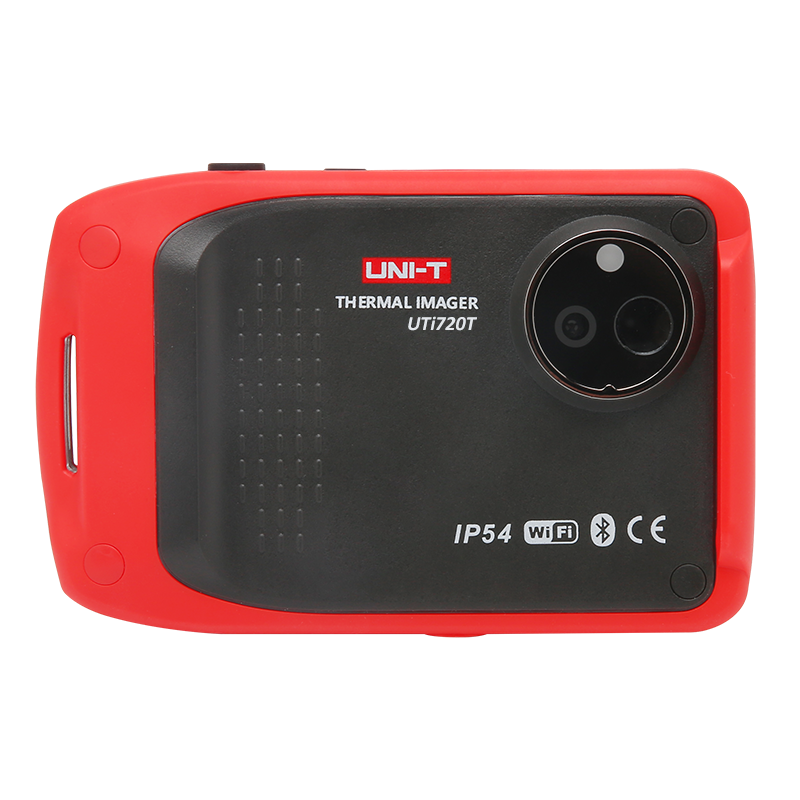

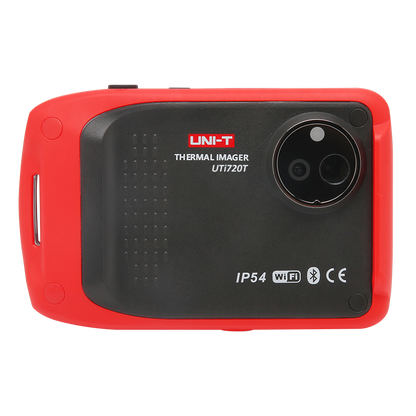

The UNI-T UTi720T is a compact professional thermal imaging camera designed for fast and accurate thermal inspection across electrical, industrial, HVAC, building, automotive and maintenance applications.
Despite its pocket sized design, the UTi720T incorporates a 256 × 192 infrared detector with 49,152 thermal pixels, a large 3.5-inch 640 × 480 touchscreen, thermal sensitivity of ≤50 mK, and a wide temperature measurement range from -20°C to 550°C.
With Wi-Fi, Bluetooth and NFC connectivity, T Mix image fusion, on-screen temperature analysis and PC/mobile analysis software, the UTi720T provides a practical thermal inspection platform for electricians, engineers and maintenance professionals.
- 256 × 192 IR resolution – 49,152 thermal pixels
- ≤50 mK thermal sensitivity (NETD) for detecting small temperature differences
- Wide -20°C to 550°C temperature measurement range
- Accuracy of ±2°C or ±2%, whichever is greater
- 3.5-inch TFT touchscreen – 640 × 480 resolution
- Wide 56° × 42° field of view
- Focus-free thermal imaging for quick inspections
- Thermal, Visual, T-Mix Fusion and Picture-in-Picture (PIP) image modes
- Wi-Fi live streaming
- Bluetooth connectivity
- NFC-assisted connectivity
- On-screen temperature measurement and analysis
- High/low temperature tracking and alarms
- Continuous 1×–8× digital zoom
- Thermal image and video recording
- 12 GB internal storage
- PC and mobile APP analysis support
- Built-in LED illumination

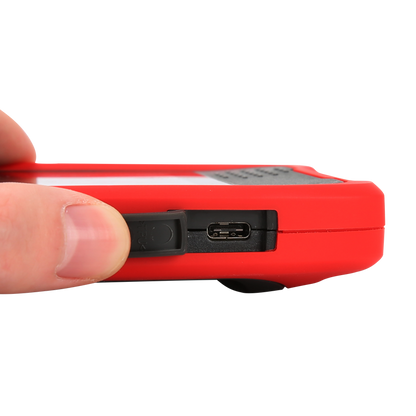

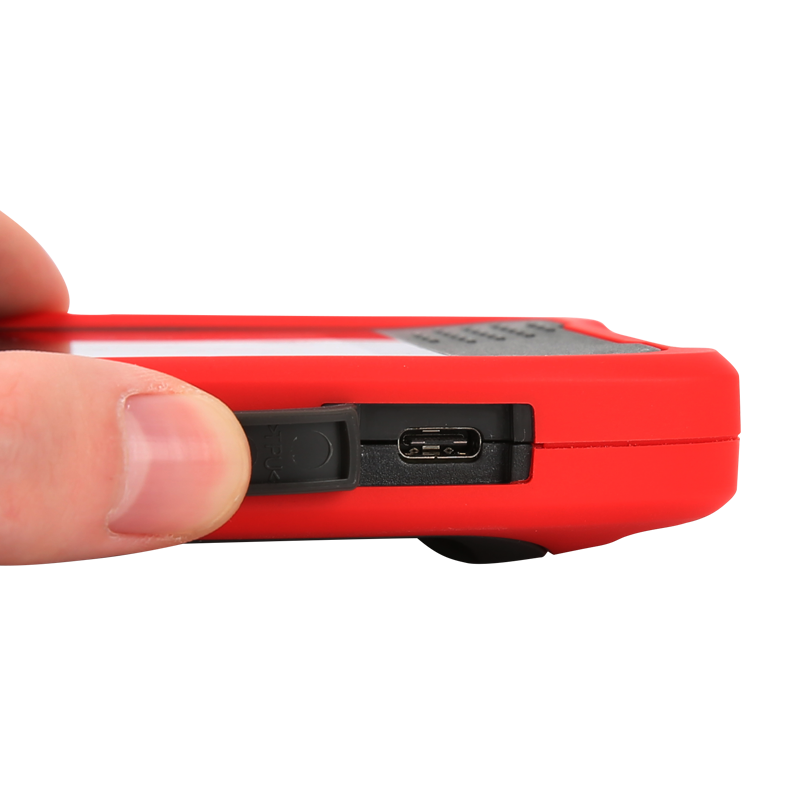

- USB Type-C connectivity
- IP54 protection
- 1 m drop resistance
- Compact design weighing approximately 213 g
